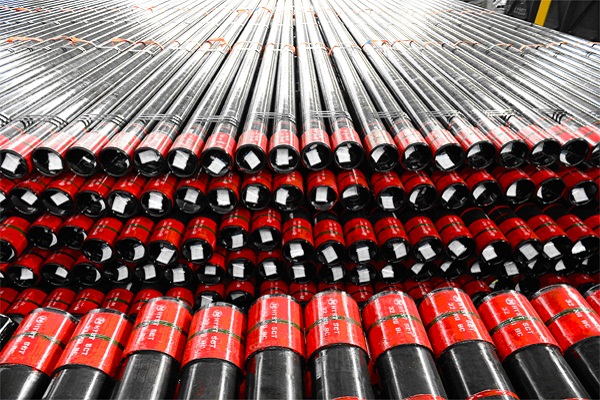

API系列油套管
衡鋼為用戶提供全部API SPEC 5CT標準鋼級和螺紋類型的油套管，包括：H40、J55、K55、L80 1/9Cr/13Cr、R95、N80 1/Q、C90、T95、C110、P110、Q125鋼級，產品尺寸涵蓋API SPEC 5CT標準全部外徑、壁厚規格以及所有螺紋類型。
API系列套管
| 規格 | 鋼級及扣型 | 執行標準 | ||||||||
| 外徑 /mm（in） | 壁厚 /mm | H40 | J55、K55 | L80-1、L80-9Cr、L80-13Cr、R95 | N80-1、N80Q | C90、T95 | C110 | P110 | Q125 | |
| 114.30 （4-1/2"） | 5.21 | S | S | API 5CT | ||||||
| 5.69 | S/B | |||||||||
| 6.35 | S/L/B | L/B | L/B | L/B | L/B | |||||
| 7.37 | L/B | L/B | L/B | L/B | ||||||
| 8.56 | L/B | L/B | ||||||||
| 127.00 (5") | 5.59 | S | ||||||||
| 6.43 | S/L/B | |||||||||
| 7.52 | S/L/B | L/B | L/B | L/B | L/B | L/B | ||||
| 9.19 | L/B | L/B | L/B | L/B | L/B | |||||
| 11.10 | L/B | L/B | L/B | L/B | L/B | |||||
| 12.14 | L/B | L/B | L/B | L/B | L/B | |||||
| 12.70 | L/B | L/B | L/B | L/B | L/B | |||||
| 139.70 (5-1/2") | 6.20 | S | S | |||||||
| 6.98 | S/L/B | |||||||||
| 7.72 | S/L/B | L/B | L/B | L/B | L/B | |||||
| 9.17 | L/B | L/B | L/B | L/B | ||||||
| 10.54 | L/B | L/B | L/B | L/B | L/B | |||||
| 168.28 (6-5/8") | 7.32 | S | S/L/B | |||||||
| 8.94 | S/L/B | L/B | L/B | L/B | L/B | |||||
| 10.59 | L/B | L/B | L/B | L/B | ||||||
| 12.06 | L/B | L/B | L/B | L/B | L/B | |||||
| 177.80 (7") | 5.87 | S | ||||||||
| 6.91 | S | S | ||||||||
| 8.05 | S/L/B | L/B | L/B | L/B | ||||||
| 9.19 | S/L/B | L/B | L/B | L/B | L/B | |||||
| 10.36 | L/B | L/B | L/B | L/B | ||||||
| 11.51 | L/B | L/B | L/B | L/B | ||||||
| 12.65 | L/B | L/B | L/B | L/B | L/B | |||||
| 13.72 | L/B | L/B | L/B | L/B | L/B | |||||
| 193.68 (7-5/8") | 7.62 | S | ||||||||
| 8.33 | S/L/B | L/B | L/B | L/B | ||||||
| 9.52 | L/B | L/B | L/B | L/B | ||||||
| 10.92 | L/B | L/B | L/B | L/B | ||||||
| 12.70 | L/B | L/B | L/B | L/B | L/B | |||||
| 14.27 | L/B | L/B | L/B | L/B | L/B | |||||
| 15.11 | L/B | L/B | L/B | L/B | L/B | |||||
| 15.88 | L/B | L/B | L/B | L/B | L/B | |||||
| 規格 | 鋼級及扣型 | 執行標準 | ||||||||
| 外徑 /mm（in） | 壁厚 /mm | H40 | J55、K55 | L80-1、L80-9Cr、L80-13Cr、R95 | N80-1、N80Q | C90、T95 | C110 | P110 | Q125 | |
| 219.08 （8-5/8"） | 6.71 | S | API SPEC 5CT | |||||||
| 7.72 | S | |||||||||
| 8.94 | S | S/L/B | ||||||||
| 10.16 | S/L/B | L/B | L/B | L/B | ||||||
| 11.43 | L/B | L/B | L/B | L/B | ||||||
| 12.70 | L/B | L/B | L/B | L/B | ||||||
| 14.15 | L/B | L/B | L/B | L/B | L/B | |||||
| 244.48 (9-5/8") | 7.92 | S | ||||||||
| 8.94 | S | S/L/B | ||||||||
| 10.03 | S/L/B | L/B | L/B | L/B | L/B | |||||
| 11.05 | L/B | L/B | L/B | L/B | ||||||
| 11.99 | L/B | L/B | L/B | L/B | L/B | |||||
| 13.84 | L/B | L/B | L/B | L/B | L/B | |||||
| 15.11 | L/B | L/B | L/B | L/B | L/B | |||||
| 273.05 (10-3/8") | 7.09 | S | ||||||||
| 8.89 | S | S/B | ||||||||
| 10.16 | S/B | |||||||||
| 11.43 | S/B | S/B | S/B | S/B | S/B | |||||
| 12.57 | S/B | S/B | S/B | S/B | ||||||
| 13.84 | S/B | S/B | S/B | |||||||
| 15.11 | S/B | S/B | S/B | |||||||
| 298.45 (11-3/4") | 8.46 | S | ||||||||
| 9.53 | S/B | |||||||||
| 11.05 | S/B | |||||||||
| 12.42 | S/B | S/B | S/B | S/B | S/B | S/B | ||||
| 339.72 (13-3/8") | 8.38 | S | ||||||||
| 9.65 | S/B | |||||||||
| 10.92 | S/B | |||||||||
| 12.19 | S/B | S/B | S/B | S/B | S/B | |||||
| 13.06 | S/B | S/B | S/B | S/B | S/B | |||||
| 406.40 (16") | 9.53 | S | ||||||||
| 11.13 | S/B | |||||||||
| 12.57 | S/B | |||||||||
| 473.08 (18-5/8") | 11.05 | S | S/B | |||||||
| 508.00 (20") | 11.13 | S/L | S/L/B | |||||||
| 12.70 | S/L/B | |||||||||
| 16.13 | S/L/B | |||||||||
| 注：S-短圓螺紋；L-長圓螺紋；B-偏梯螺紋 | ||||||||||
API系列油管
| 規格 | 鋼級及扣型 | 執行 標準 | |||||||
| 外徑 /mm（in） | 壁厚 /mm | H40 | J55 | L80-1、L80-9Cr、L80-13Cr、R95 | N80-1、N80Q | C90 | T95 | P110 | |
| 48.26 (1.900") | 3.18 | ||||||||
| 3.68 | N/U | N/U | N/U | N/U | N/U | N/U | N/U | ||
| 5.08 | U | U | U | U | U | U | U | ||
| 6.35 | |||||||||
| 7.62 | |||||||||
| 60.32 (2-3/8") | 4.24 | N | N | N | N | N | N | N | |
| 4.83 | N/U | N/U | N/U | N/U | N/U | N/U | N/U | ||
| 6.45 | N/U | N/U | N/U | N/U | N/U | ||||
| 7.49 | |||||||||
| 8.53 | U | U | U | U | |||||
| 73.02 (2-7/8") | 5.51 | N/U | N/U | N/U | N/U | N/U | N/U | N/U | |
| 7.01 | N/U | N/U | N/U | N/U | N/U | ||||
| 7.82 | N/U | N/U | N/U | N/U | N/U | ||||
| 8.64 | U | U | U | ||||||
| 9.96 | |||||||||
| 11.18 | |||||||||
| 88.90 (3-1/2") | 5.49 | N | N | N | N | N | N | N | |
| 6.45 | N/U | N/U | N/U | N/U | N/U | N/U | N/U | ||
| 7.34 | N | N | N | N | N | N | |||
| 9.52 | N/U | N/U | N/U | N/U | N/U | ||||
| 10.92 | |||||||||
| 12.09 | |||||||||
| 13.46 | |||||||||
| 101.60 (4") | 5.74 | N | N | N | N | N | N | ||
| 6.65 | U | U | U | U | U | U | |||
| 8.38 | |||||||||
| 10.54 | |||||||||
| 12.70 | |||||||||
| 15.49 | |||||||||
| 114.30 (4-1/2") | 6.88 | N/U | N/U | N/U | N/U | N/U | N/U | ||
| 8.56 | |||||||||
| 9.65 | |||||||||
| 10.92 | |||||||||
| 12.70 | |||||||||
| 14.22 | |||||||||
| 16.00 | |||||||||
